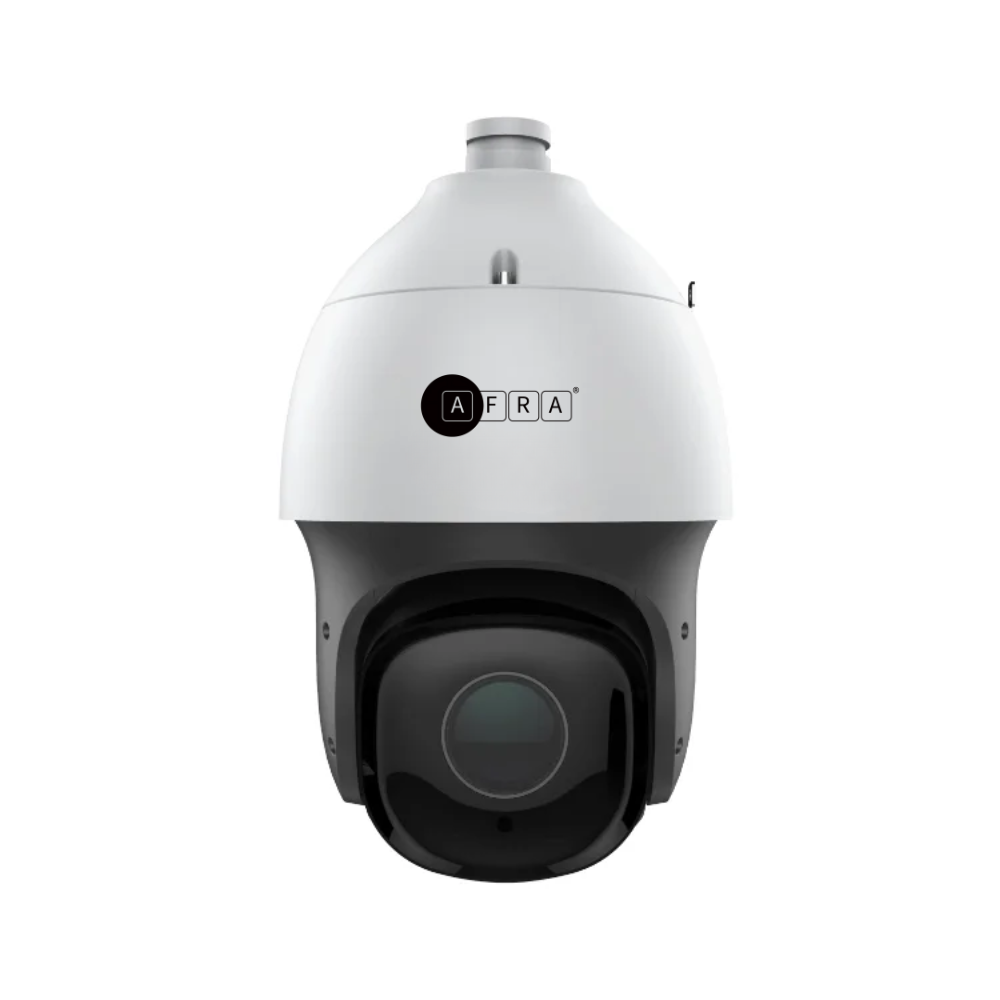

AFV-SD523XAP 5MP 23× Starlight IR POE AI PTZ Camera - AFRA ELECTRONICS

Key Features

Up to 2880×1620@30fps
Optical zoom: 23×, digital zoom 16×
Smart IR, IR Range: 150m
S+265/H.265/H.264/M-JPEG
Intelligent monitoring
Support Human/Vehicle Classification
Plugin Free
IP66

Payment

Operating Mode	N/A
Face Detection Performance	N/A
Face Exposure Brightness	N/A
Min. Face Pixel	N/A

Pan Range	360°
Pan Speed	Pan Manual Speed: 0.1°~200°/s, Pan Preset Speed: 240°/s
Tilt Range	-16°~90° (Default -3°~90°)
Tilt Speed	Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 180°/s
3D Position	Yes
Preset	500
Preset Accuracy	±0.4°
Cruise	16, up to 32 presets per cruise
Scan	8
Pattern	8, each with 600s memory or 1000 orders
Scheduled Task	Preset、Cruise、Scan、Pattern、Alarm output
Park Action	Yes
Power-off Memory	Yes
Preset Freezing	N/A

Image Sensor	1/2.8″ CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.001lux@ (F1.5, AGC ON), BW: 0lux with IR
Shutter Time	1s to 1/100,000s
Day & Night	IR Cut Filter with Auto Switch
Optical Zoom	25X
Digital Zoom	16X

Focal Length	4.8mm~120mm
Zoom Speed	<4s
Field of View	Horizontal filed of view: 58.5° (w)~2.8° (t) Vertical filed of view: 33.2° (w)~1.5° (t) Diagonal field of view: 65.2°(w)~3.3° (t)
Aperture Range	F1.5~F3.8
Focus Control	Auto/Manual
Iris Control	Auto
Close Focus Distance	1 m‒1.5 m

Max. Resolution	2MP (1920×1080)
Main Stream	PAL: 25fps (1920×1080, 1280×720, 704×576, 640×480) NTSC: 30fps (1920×1080, 1280×720, 704×480, 640×480)
Sub Stream	PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream	PAL: 25fps (352×288) NTSC: 30fps (352×240)
BLC	Yes
HLC	Yes
WDR	True WDR
Image Stabilization	N/A
Defog	Digital
White Balance	Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance
AGC	Yes
Noise Reduction	2D/3D
ROI	7 Dynamic Areas for Both Main and Sub Stream
Picture Overlay	Yes
Privacy Mask	Yes
Demist	Yes
Image Setting	Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Flip	Yes
OSD	16×16, 24×24,32×32, 48×48, 64×64, adaptable size, Letters such as Week, Date, Time, Total 5 Regions

Video Compression	S+265/H.265/H.264/M-JPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate	8K～48Kbps

Alarm Trigger	Event Input, Event Output, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics	Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, People Counting, Video Abnormal, Audio Abnormal,Human/Vehicle Classification
Early Warning(EW)	N/A
Auto-Tracking	N/A

Protocols	HTTP / HTTPS / TCP / UDP / UPnP / SNMP / DHCP / DNS / DDNS / Easy / DDNS / NTP / SMTP / SSL / 802.1X / QoS / IPv4 / IPv6 / PPPOE / SSH / Unicast / Multicast / RTMP / RTP / RTSP / NFS / SMB / CIFS / FTP
System Compatibility	ONVIF (PROFILE S/T/G/M), SDK, CGI, P2P
ANR	Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
Remote Connection	≤7
User/Host	Up to 32 users. 4 user levels
Web	IE,Firefox,Edge,Safari,Chrome

Communication Interface	1 RJ45 10M/100M self adaptive Ethernet port
Audio I/O	1/1
Alarm I/O	1/1
Built-In Speaker	N/A
Reset Button	Yes
On-board storage	Built-in Micro SD card slot, up to 512 GB
RS-485	N/A
BNC	N/A
Wiper	N/A
Electronic Compass	N/A
GPS/BDS	N/A

Protection	IP66 , TVS 6000V lightning protection, surge protection and voltage transient protection
Web Client Language	17 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/ Turkish/Russian/Thai/French/Polish/Dutch/Hebraism/Arabic/Vietnamese/German/Ukrainian
Operating Conditions	-30°C~65°C (IR OFF), -30°C~40°C (IR ON), 0-95%RH
Power Supply	DC12V±10%/POE+(IEEE802.3 at)
Power Consumption	9W(IR OFF), 22W(MAX)
Heater	N/A
Material	ADC 12
Package/Boundary Dimensions	Φ250x445mm (Φ161x276mm)
Gross/Net Weight	5.1kg (3kg)

IR LEDs	6
IR Distance	Up to 150m
IR Irradiation Angle	Adjustable by Zoom
White LEDs	N/A
Laser	N/A
Laser Distance	N/A
