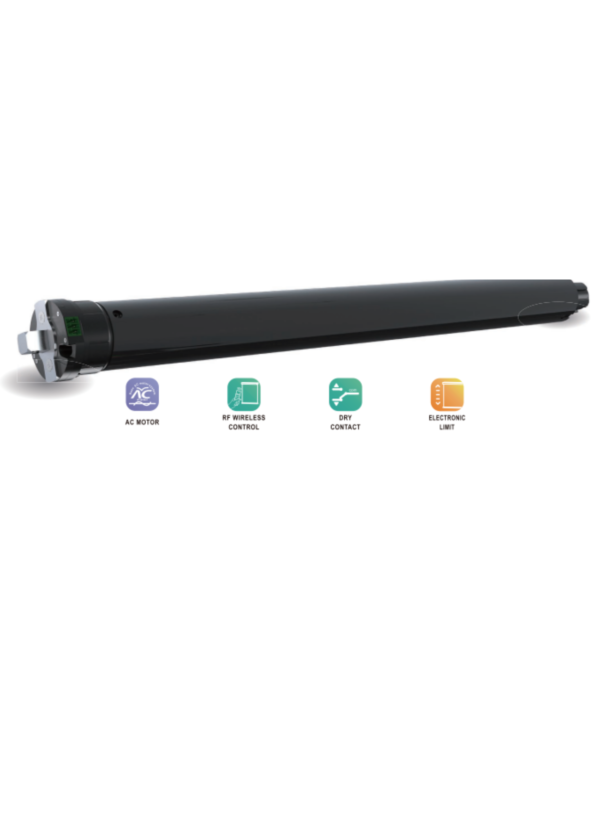

TD201 45MM TUBULAR MOTOR

The device operates at a rated voltage of 220–240V AC with a frequency of 50/60Hz and has a rated power of 140W. It provides a rated torque of 12N·m and a speed of 22/26 rpm, functioning under a working system of S2 for 6 minutes. The unit is built with an IP44 protection grade and produces noise levels under 40dB. Its dimensions are Φ45×575mm, and it is identified by product code 10100031 | TAE45-12/22. The device supports RF wireless control and includes a dry contact function.
